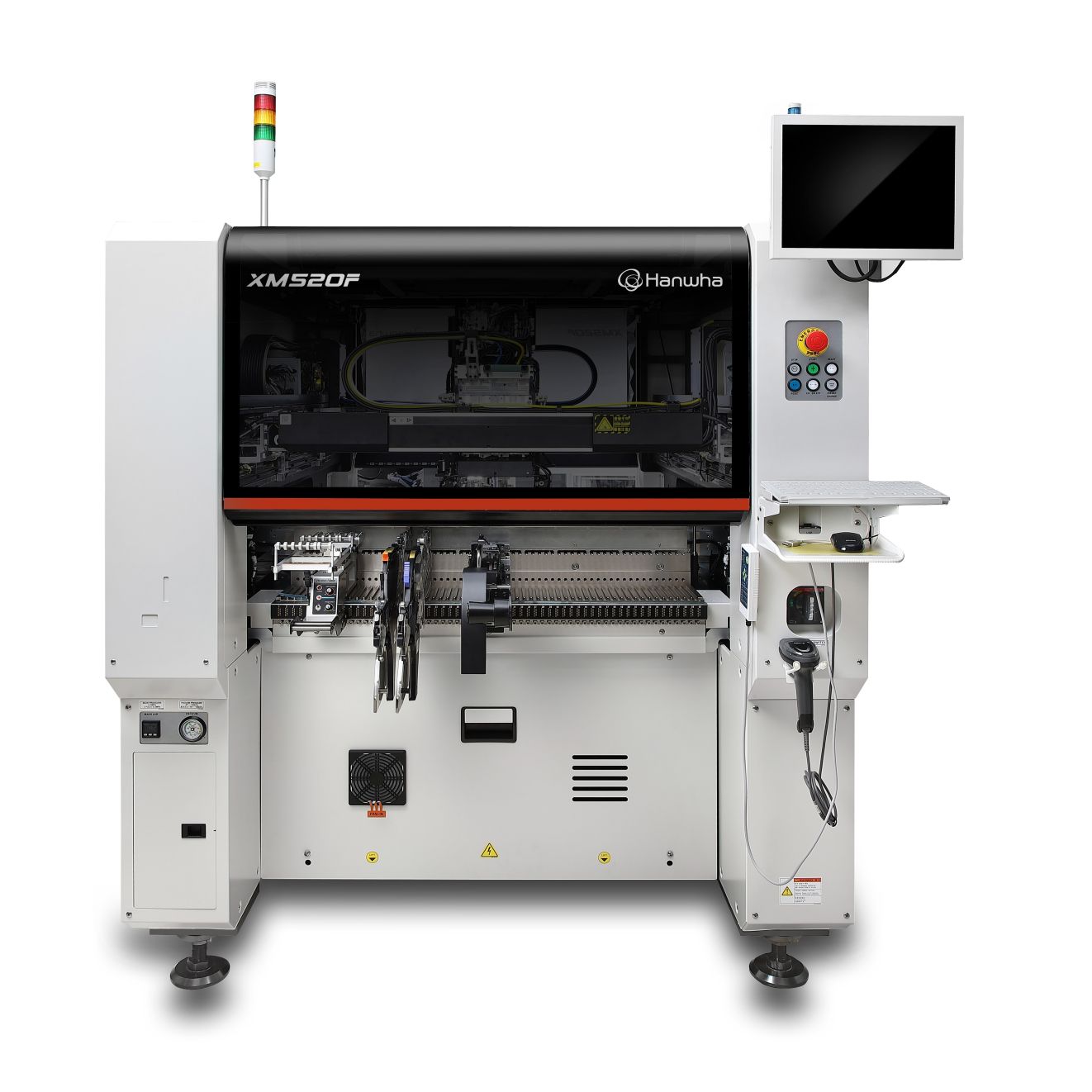

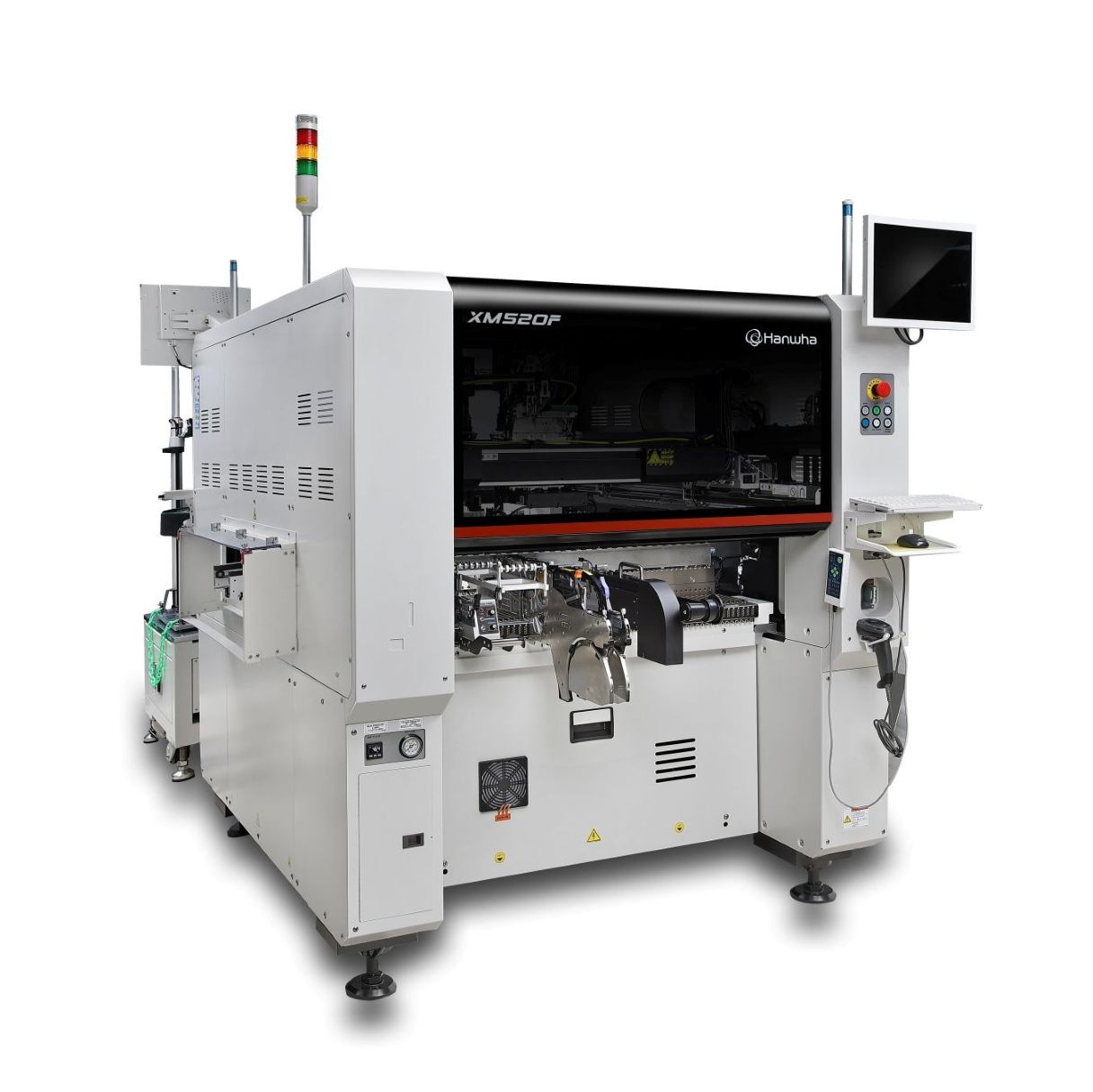

Ultra Wide Range Pick and Place Machine - XM520F

(0 Reviews)  Review this item

Very wide range component handling up to 150mm x 75mm.  Tall Component Handling of up to 55mm.  Heavy PCB handling up to 5Kg

CPH (Optimal) 30'000
Smallest Component (Imperial) 0201
Smallest Component (Metric) 0.6mm x 0.3mm
Largest Component Handling 150mm x 75mm
Component Height Maximum 55mm
Placement Accuracy ±40um
PCB Size (Minimum) 50mm x 50mm
PCB Size (Maximum) 500mm x 430mm
PCB Size (Optional) N/A
Feeder Capacity (8mm) 120
Gripper Use YES
Gantry Type Dual Gantry (5 Spindles x2)
Conveyor Type (Optional) N/A
Conveyor Type (Standard) 3 Stage
Alignment Type Vision area Scan

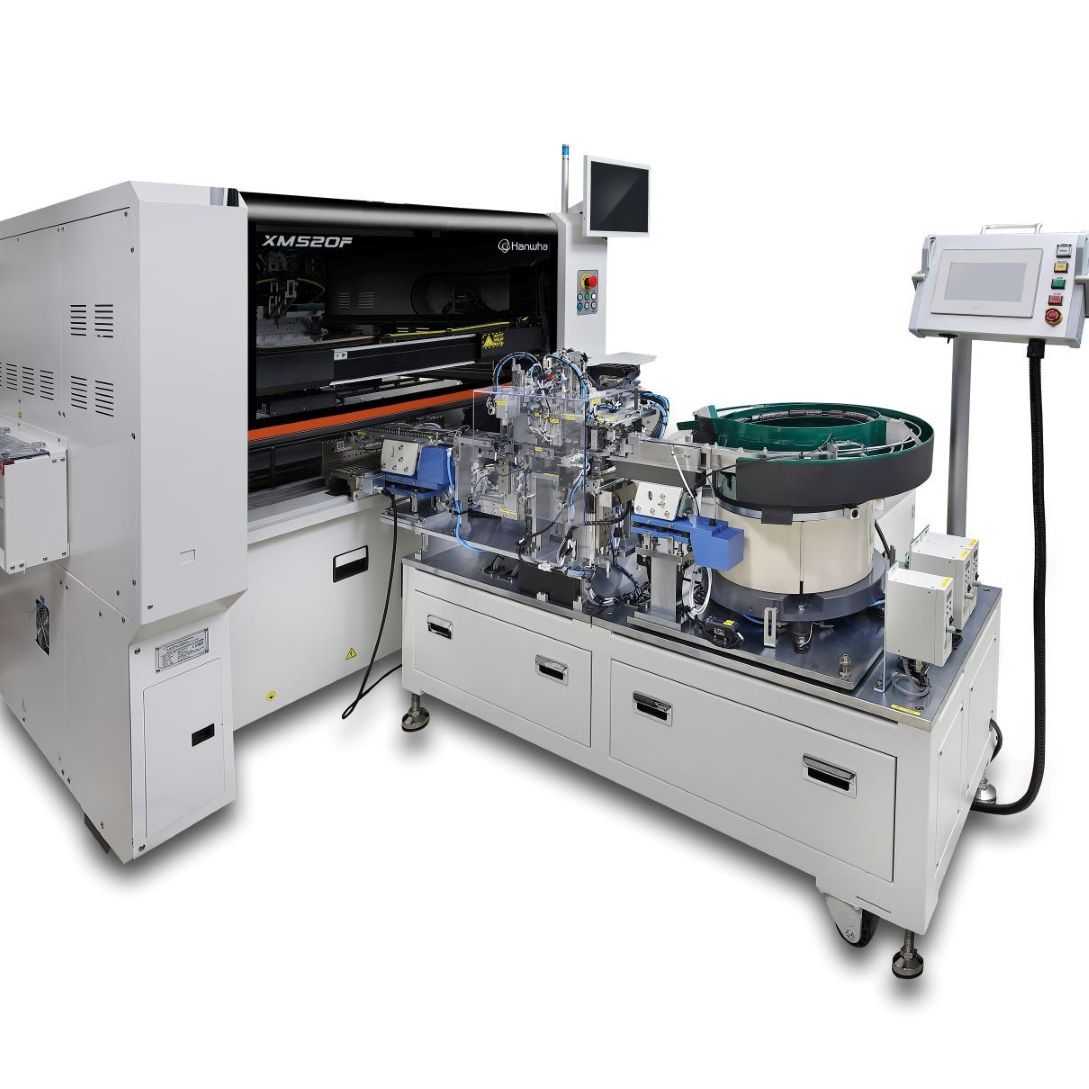

Feeder Type Pneumatic + Electric
