JT SE450 Wave Solder Machine

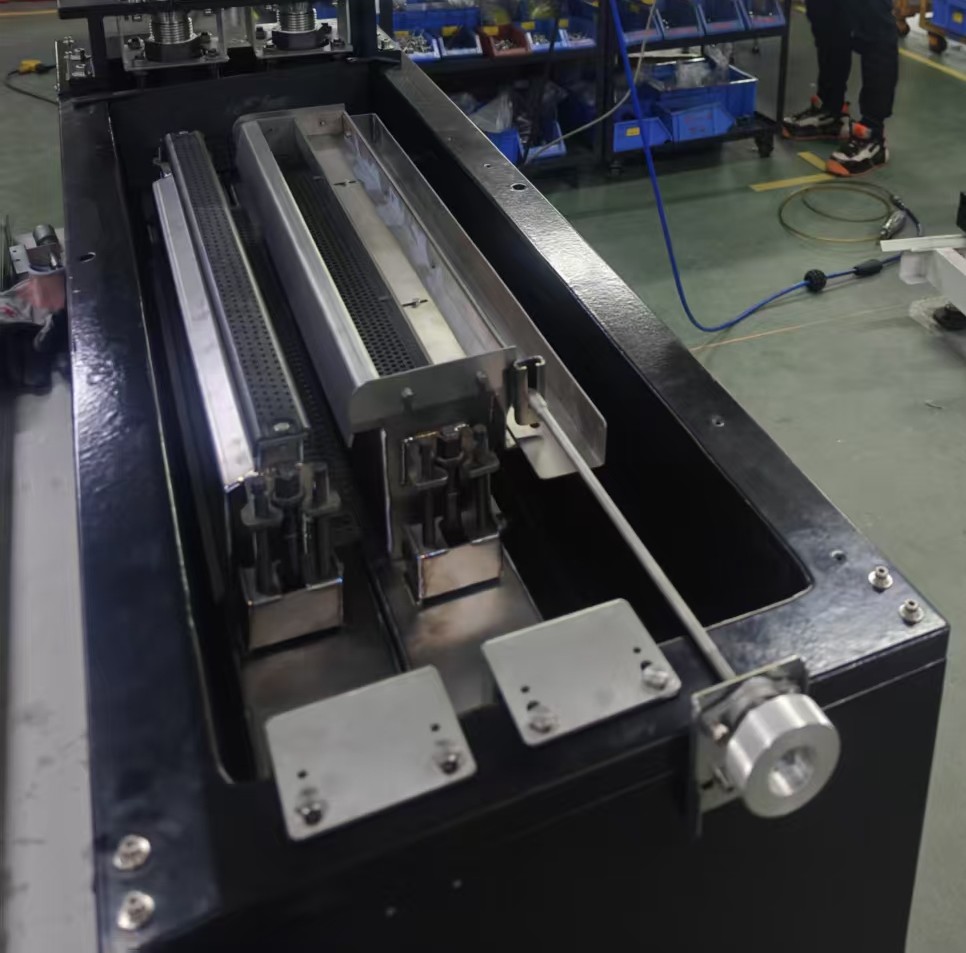

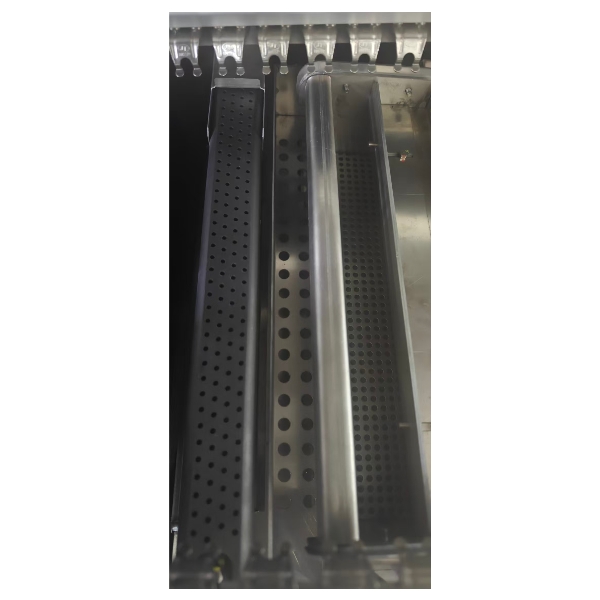

The JT SE450 wave soldering machine is a professional machin from the leading wave soldering supplier JT. Industry proven with more than 25 years of manufacturing Wave Soldering Machines for through-hole components on printed circuit boards (PCBs). Th JT SE450 offers low pwer running costs as well as low mantenance costs. Many things as standard such as motorised roll out pot, convection heating and a dual wave pot backed by the service of Elite 7 Installations..
Main features:
- Conveyor controlled by a closed Loop Inverter driven system: Ensures conveyor speed stability and accuracy for precise operation
- Assistant Pressure Device: Positioned near the entrance to prevent PCBs from slipping thus causing components to jump
- Stepper Motor-Driven Spray Fluxer: Guarantees uniform coating, ensuring optimal performance
- Modular Spray Fluxer: Ensures uniform spray fluxing of the board
- Forced Air Cooling System: Helping cool down boards effectively
- 1800mm of Convection Preheating Zones: 3 stage pre-heating
- Centrifugal Fan Exhaust with Double Filters: Prevents flux dropping onto PCBs, ensuring cleaner results
- Non-Contact Sensor-Controlled Flux Container: Enhances longevity and prevents corrosion for longer life
- Self-Cleaning Flux Spray Nozzle: Low maintenance flux nozzle, ensures repeatable fluxing
- Air Knives for Flux Containment: Standard feature preventing flux expanding into preheat zones
- Wave Height Control with Inverter: Easy to use to set wave heights and fine adjustment
- High Power Mechanical Pump: 1/4HP capacity to achieve waves as high as 15mm
- Safety Features: Light and sound alarms, emergency stop, and over-load protection, CE Standard
Options:
- Nitrogen
- Water Chiller
- Central wire for large board width
