Ideal mounter for high volume/high performance electronics, such as mobile phones and automotive applications.
With component sizes shrinking and PCBs becoming more densly populated, the placement repeatability and accuracy is more critical. The Hanwha HM520 series is ideally suited to this style application.

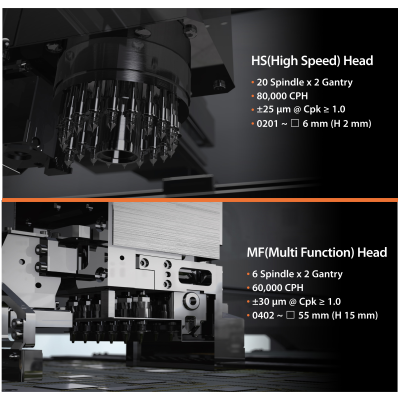

The HM520 HS Module can handle the smaller chip components at very high speed using the rotary heads to achive that. The FS module is a multi function module, capable of placing larger components up to 55mm square including shield can devices.
HM Series machines are fully traceable from component tracking, PCB tracking by barcode and fully Intelligent system. All managed and controlled by the T-Solution Factory management software.
Key Advantages of HM Series:
- Reduction in Line Length with High Throughput
- Very Low Cost of Ownership
- Easy to use Software
- Ideal for high-volume/High Mix production
- Improved Axis and frame design over previous chipshooter models giving greater speed and higher precision
- Improved component range and now capable of placing 0.2mm x 0.1mm components at high speed
- Easy to use MMI and Off Line Software with Touch Screen for operator convenience
- Fully Modular System depending on target cph needed and feeder requirement
- New Feeder Type for High Speed Indexing and intelligent as standard
