Fully Automatic High Speed SMT Adhesive Dispenser from DESEN the Q600 and Q600L.
The Q600 Dispenser is a perfect solution for SMT automatic dispensing and is a top class solution for both glue and solder dispensing as well as other adhesives.
Can be single or multiple heads for additional speed.
Key Points:
- PCB Size Minimum: 50mm x 50mm
- PCB Size Maximum: 450mm x 450mm
- Dispensing Range: 300mm x 450mm (Single Valve)
- Maximum Speed: 1000mm/s
- Acceleration: 1.0G
- Positional Accuracy: ±30um@3sigma(X,Y), ±20um@3sigma(Z)
- Repeatable Positional Accuracy: ±15um@3sigma(X,Y) ,±5um@3sigma(Z)
- Controllable Dispensing Commands: Point, Line. Multi- section line, Arc, Circle, Rectangle Filling, Circular Filling and 3D Dynamic Trajectory; Multi-dispensing Process: Encapsulation, Under Fill, Dam and Fill, SMA and Conductive Silver Epoxy, etc.
- Multi Valves Available Can Be specified by Customer according to application
Options:
- Laser height sensor
- Product heating
- Automatic weight calibration

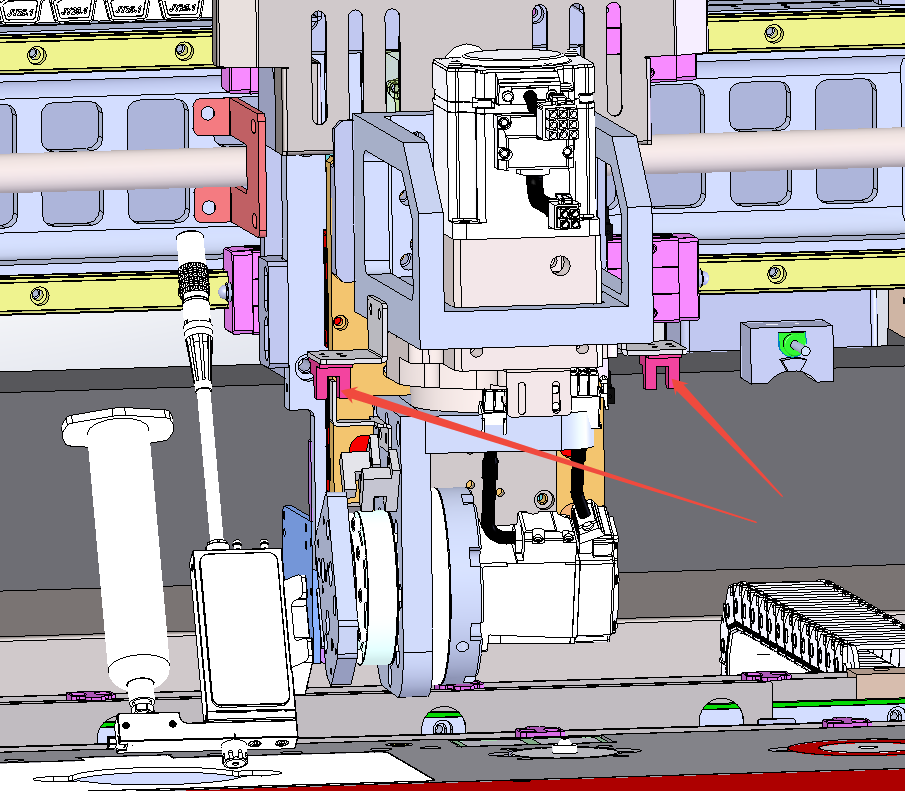

- Tilt & rotate (Reduces Dispensing Range to 300mm x 450mm)
- PCB Barcode scanning
- MES Closed Loop
- Dual Conveyor (1st & 4th Fixed),
- 2 Segment Conveyor (Reduces PCB Size to 200 x 450mm)
- 3 segment conveyor (Reduces PCB Size to 200 x 450mm)
- Q600L Large Board machine -
Large Board Option - Q600L
- Q600L Dispensing Range (With Tilt+Rotate): 440mm x 480mm
- PCB Handling: 600mm x 580mm
