Following the highly successful Hanwha DECAN S1 comes the upgraded Hanwha DECAN S1 PLUS.
Upgraded speed, conveyor, New NPI functions and improved MMI and monitor.
Key Features:
- Wide Component Placement range from 0.3mm x 0.15mm up to 75mm Long Connectors
- 50'000cph "Optimum" Placement Speed
- 120 x 8mm Feeder Capacity
- Good Board handing of 510mm x 510mm as standard and optional conveyor systems up to 1500mm x 510mm.
- NPI Features for first offs and prototypes to avoid component loss of small strips
- 16% increase in performance over the DECAN S1
- Improved PCB Detection system by adding a side Fibre Sensor
- Improved PCB Weight handling of up to 4.5Kg, ideal for Server Back planes or Data center back planes

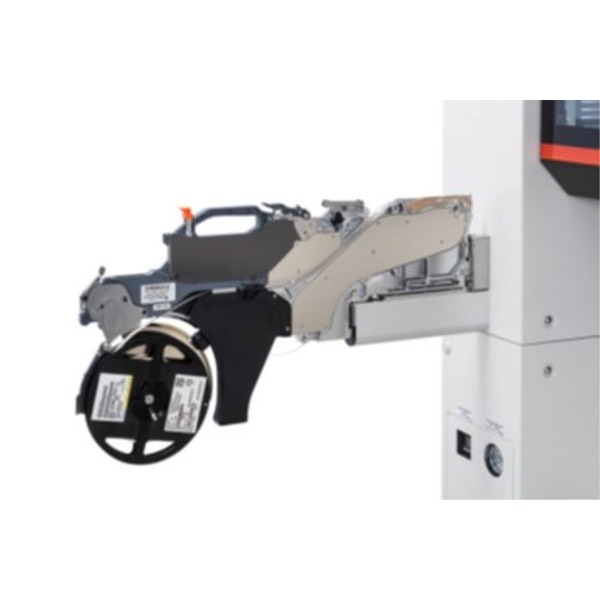

- Built in Electric Feeder Set up Jig
- Improved Monitor featuring
